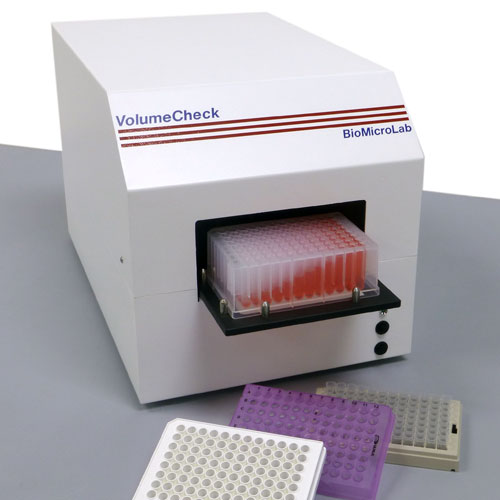

VolumeCheck for 24-96 well formats
How It Works
The VolumeCheck uses ultrasonic technology to measure the distance between the sensor and the height of the meniscus. It then extrapolates the distance from a calibration table created by the user and outputs the volume. The technology allows for sample measurement of sample volume in a wide variety labware.
Features
- Outputs sample volume for each well
- Scans Water / Alcohol / DMSO and more based samples
- Simple calibration procedure
- Scans a 96 well plate in 1 minute
- Small footprint: 11.75" H x 10.25" W x 16.25" D
Automation Benefits
- Automated plate volume QC
- Replaces visual or manual inspection of well plates
Compatible Labware
- PCR plates / assay plates
- Shallow / deep well plates
- 96, 48, & 24 well SBS labware
- Vials or tubes up to 95mm in height
- Uncapped or unsealed labware
- Wide variety of common SBS format racks and plates
- No consumables needed -- works with your racks and plates
- No rack adapters needed
VolumeCheck Software
- Graphically displays well plate volumes in an on-screen color map
- User interface designed for quality control applications
- Project-based software for multiple types of applications and labware
- Outputs customizable CSV file for Excel or LIMS
- Integrates with other software using ActiveX Toolkit
- Prints plate reports
- Includes plate data calibration table utility
- Windows-based (compatible with Windows 10, 8, 7, vista)
